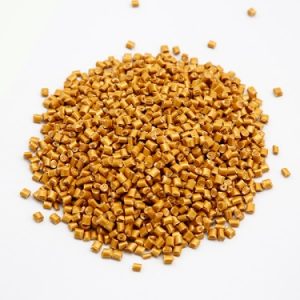

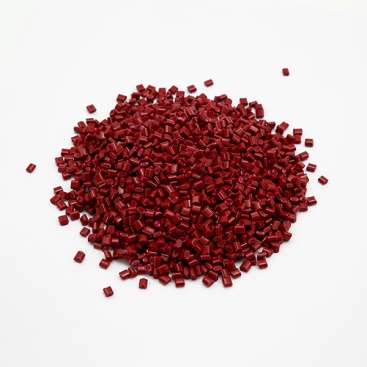

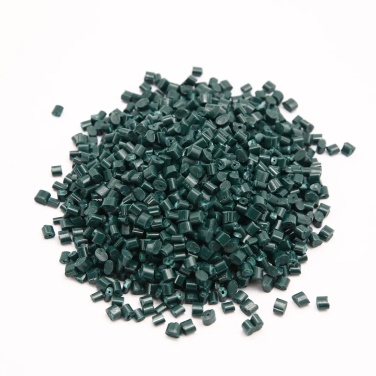

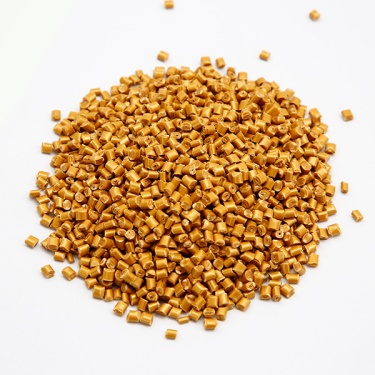

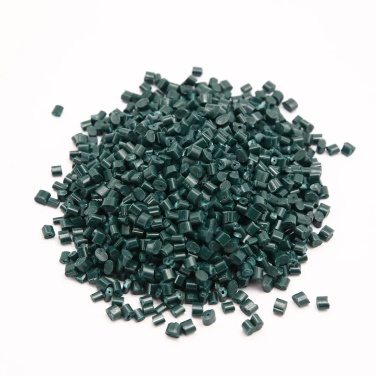

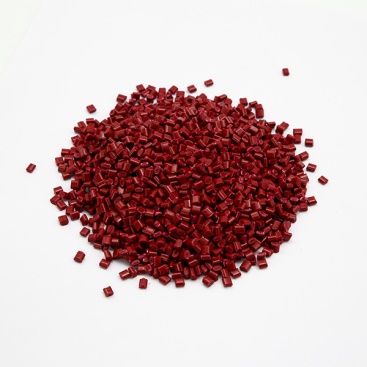

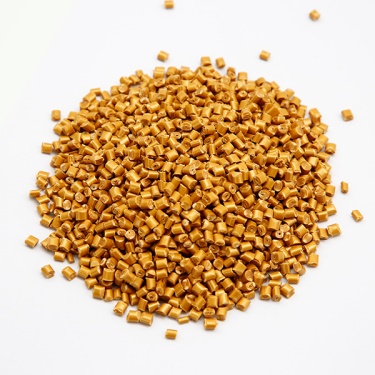

Modified ASA Granules

ASA material is a kind of high performance new material. Technically, ASA not only maintained the main characteristics of the ABS, it also combines the weather resistance advantage of acrylic to extend the product application for outdoor purposes.

+860719-8316811

Identification method

Here are important index to measure the quality grade of all kinds of recycled material particles.

(1) Surface finish: high quality recycled material is smooth and lubrication;

(2) Transparency: usually, the material is lucid, and the quality is good;

(3) Color uniformity and consistency;

(4) Particle density is an important aspect to test the regeneration process: bad plasticization, loose particles;

(5) Whether the recycled particles float and sink in the water to test the content of PP and PE particles.

(6) About recycled materials, different recycled materials have different uses, because there is no unified standard, to fully meet the user’s technical requirements shall prevail.

Advantage

Features of product

(1) Improve the surface performance of improved wear resistance and scratch resistance, can be customized according to customer special requirements;

(2) The latest development of the metal texture, realistic wood grain products, improves the quality of profiles;

(3) Stable production process, reduce color co-extrusion material consumption, and effectively improve the rate of finished products.

Why choose us?

(1) Customized material

High strength

Super toughness

High impact

Flame retardant (UL94 HB,V1,V0)

Hydrolysis resistant

Heat-resistance

Wear-resistance

UV-stabilized

Low war page

Chemical resistance

Color matching service

(2) Quick and professional support for customers

(3) Best quality, competitive price

(4) Strict raw material inspection, and producing monitoring

(5) Test certificates are available

(6) Fast delivery

(7) 7*24 hours to response your questions, recommend the most suitable material

Technical parameter

ASA property parameter table
Property item Test condition Test method ASA Unit
Physical properties Specific gravity ASTM D792 1.06
Water absorption rate ASTM D570 0.03 %
Mould contraction rate 3.2mm ASTM D955 4-6 E-3
Melt idex ASTM D1238 / g/10min
Mechanical properties Izod notched impact strength ASTM D256 533 J/m
Tensile strength (yield point) ASTM D638 39 Mpa
Tensile rate (rupture point) ASTM D638 30 %
Flexural yield strength ASTM D790 54 Mpa
Flexural modulus ASTM D790 1650 Mpa
Hardness Rockwell ASTM D785 / R
Thermal properties Heat deflection temperature HDT/A 0.45Mpa ASTM D648 96 °C
Heat deflection temperature HDT/A 1.8Mpa ASTM D648 82 °C
Vicat softening point ASTM D1525 / °C
UL Long-term use temperature UL746B 50 °C
Flame retardant 3.0mm UL94 HB
Linear Expansibility fluidity E831 / 1/°C
Electrical properties Dissipation factor 60Hz ASTM D150 /
Permittivity 60Hz ASTM D150 /
Dielectric strength ASTM D149 / kv/mm
(Ohm-cm) Surface residtivity ASTM D257 / Ω-cm
(Ohm-cm) Volume residtivity ASTM D257 1.00E+15 Ω-cm

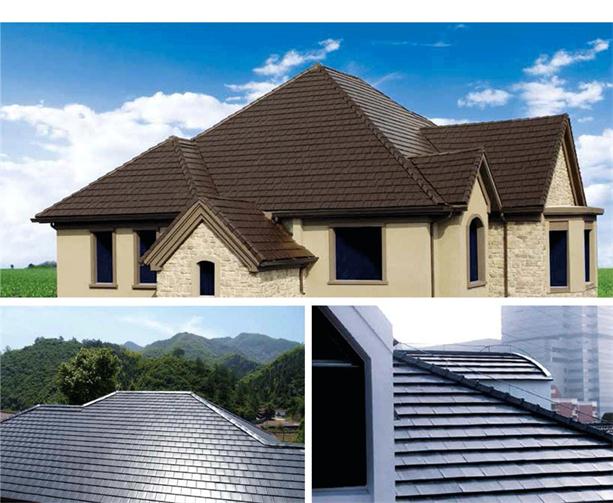

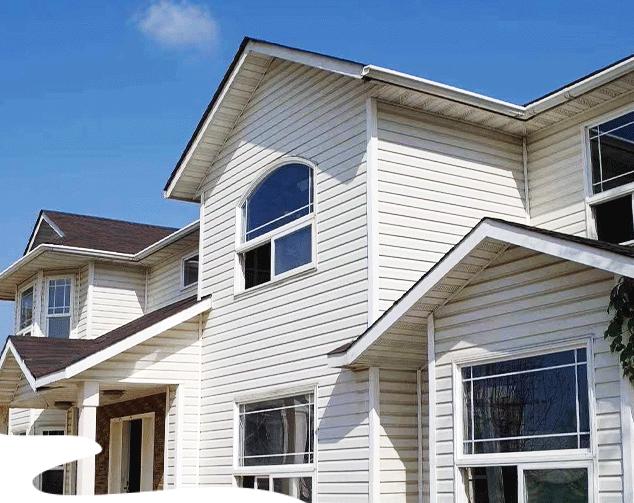

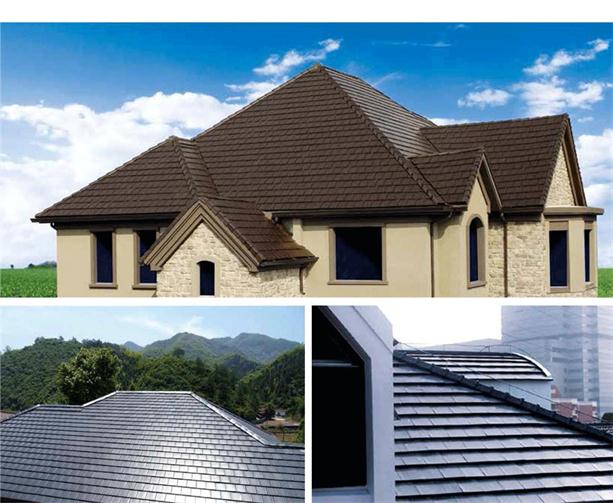

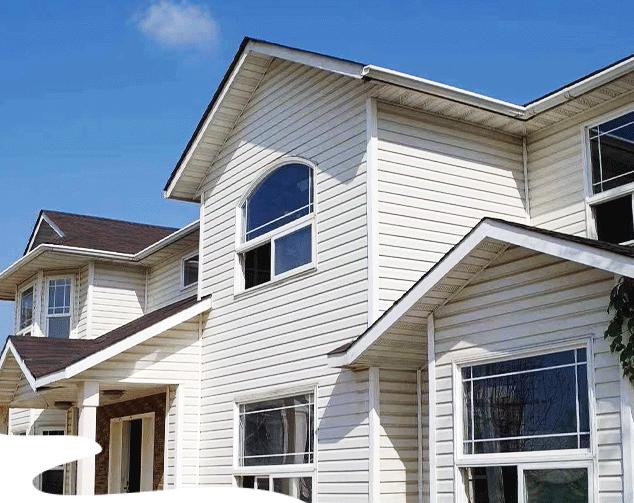

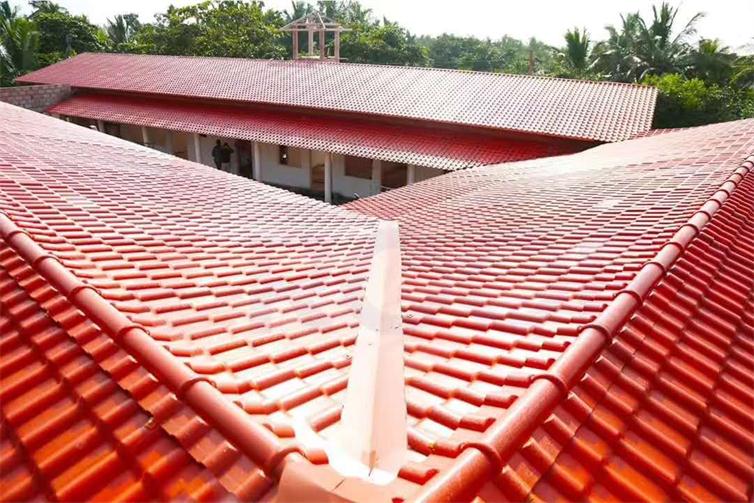

Application
